Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil
| Place of Origin | Anping,China |
|---|---|
| Brand Name | Source Wire Mesh |
| Certification | ISO:9001/ISO:14001/ISO:18001 |
| Model Number | UJ-RBW006 |
| Minimum Order Quantity | 50 coils |
| Price | $1200.00-$1400.00/TON |
| Packaging Details | waterproof paper inner, woven bag outside or with carton for Low price concertina hot dipped galvanized razor barbed wire |
| Delivery Time | 10 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 30 Ton/Tons per month BTO-22 razor barbed wire |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Iron Wire, Stainless Steel | Type | Razor Barbed Wire |
|---|---|---|---|
| Coil Type | Cross Type Concertina Wire | Razor Type | Bto-10 Bto-22 CBT-60 CBT-65 |
| Razor Thickness | 0.2-0.8mm | Coil Diameter | 450-960mm |
| Stretched Length | 8-12m | Zinc Coating | 60-270g/m2 |
| Circles | 33-102 | Application | Protection |
| Product Name | Coil Diameter 700MM BTO-22 Galvanized Razor Barbed Wire | ||
| High Light | 700MM Razor Barbed Wire,ISO 14001 Razor Barbed Wire,Electro Galvanized Razor Wire |
||
Product Description

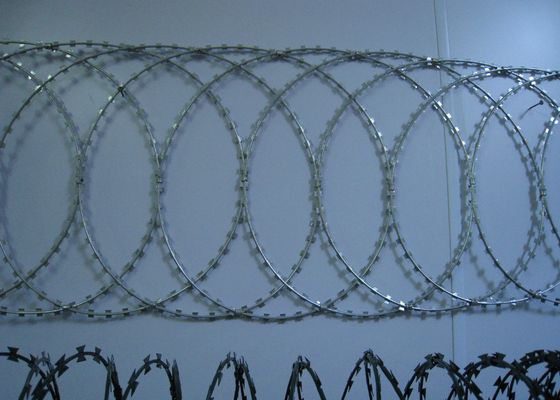

Coil diameter 700MM BTO-22 Galvanized Razor Barbed Wire
Razor Barbed Wire Product Description:
1. Razor barbed wire is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
2. Material: high carbon steel, galvanized steel sheet and wire, stainless steel sheet and wire. Usually, hot dipped galvanized razor barbed wire is popular in the market.
3. Surface finished: Electro galvanized, Hot dipped galvanized, PVC coated.
Specification List:
|
Razor Wire Size Specifications
|
|||||
|
Peference Model
|
Thickness (mm)
|
Wire Diameter (mm)
|
Barb Length
(mm) |
Bard Width
(mm) |
Bard Spacing
(mm) |
|
BTO-12
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
BTO-15
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
BTO-22
|
0.5±0.05
|
2.5±0.1
|
02±1
|
15±1
|
34±1
|
|
BTO-28
|
0.5±0.05
|
2.5±0.1
|
28
|
15
|
45±1
|
|
CBT-30
|
0.5±0.05
|
2.5±0.1
|
30
|
18
|
45±1
|
|
CBT-60
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
100±1
|
|
CBT-65
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±1
|
|
Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Razor Type
|
Notes
|
|
450mm
|
33
|
7M-8M
|
CBT-60, 65
|
Single Coil
|
|
500mm
|
56
|
12M-13M
|
CBT-60, 65
|
Single Coil
|
|
700mm
|
56
|
13M-14M
|
CBT-60, 65
|
Single Coil
|
|
960mm
|
56
|
14M-15M
|
CBT-60, 65
|
Single Coil
|
|
450mm
|
56
|
8M-9M (3clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
500mm
|
56
|
9M-10M (3clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
600mm
|
56
|
10M-11M (3clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
600mm
|
56
|
8M-10M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
700mm
|
56
|
10M-12M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
800mm
|
56
|
11M-13M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
900mm
|
56
|
12M-14M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
960mm
|
56
|
13M-15M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
980mm
|
56
|
14M-16M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
Product Images:
Concertina Wire Type
Concertina Wire Use:
Packing & Delivery:
Our company was established in 2002. Mainly producing wire mesh products, our company is a synthetic enterprise which integrates production, research and foreign trade together. Our main products are Stainless Steel Wire Mesh,Decorative Wire Mesh,Welded Wire Mesh,Razor Barbed Wire and sintering mesh ,hexagonal mesh, sintering mesh, and further processed products which are commonly exported to Korea. Our products are well distributed to America, Europe, the Middle East, Southeast Asia and Africa markets. We sincerely invite you to visit our factory and make good benefits for both of us.
