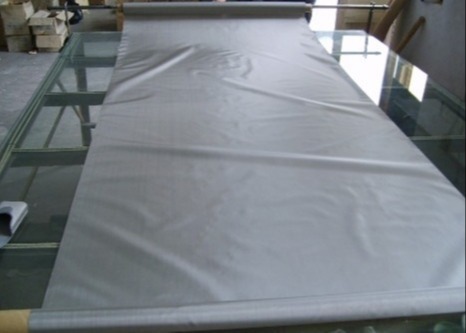

304 Stainless Steel Weave Mesh

Stainless Steel Woven Mesh

It is made of a weft wire and warp wire with same diameter woven together and is a knitting pattern in which each warp thread crosses the top and bottom of each weft thread at an angle 90 degrees.It has excellent resistance to acid,alkali,high temperature and abrasion.

Materials:302,304,304L,310,316,316L,321,410,410L,super duplex stainless steel,duplex stainless steel or customized.

• SS304    The most commonly used stainless steel in wire weaving.Excellent corrosion performance,can withstand temperatures of                1100 degrees Fahrenheit.

• SS304L  Similar performance to ss304,but with lower carbon content,better welding can be achieved.similar properties to                               ss304 but is stabilized by the addition of Molybdenum for increaesed resisance to chemical corrosion.

• SS316    Similar to ss304,but stabilized by adding molybdenum to improve its chemical resistance.

•

•  Stanless Steel Woven Mesh Specifications:

  型 号type	规格 Specification	名义孔径尺寸 mm Nominal size	有效截面率% Effective area(%)	网黑 kg/m2 Weight	网厚 mm Thiokness	对应旧标准网号
  MXW3	500×3500/0.025×0.015	3	4.9	0.30	0.055	1970
  MXW4	400×2700/0.028×0.02	4	4.7	0.36	0.068	1570
  MXW4	363×2300/0.032×0.022		4.5	0.40	0.076	1430
  MXW4	325×2100/0.036×0.025		4.2	0.46	0.086	1280
  MXW4	325×2300/0.036×0.025
  MXW5	317×2100/0.036×0.025	5	4.7			1250
  MXW6	300×2100/0.036×0.025	6	6.0	0.45		1180
  MXW7	285×2100/0.036×0.025	7	7.2	0.44		1125
  MXW8	250×1600/0.05×0.032	8	3.8	0.63	0.114	1000
  MXW8	250×1900/0.04×0.028		7.8	0.51	0.096
  MXW9	203×1500/0.056×0.036	9	6.2	0.67	0.128	795
  MXW10	216×1800/0.045×0.03	10	9.4	0.53	0.105	850
  MXW10	203×1600/0.05×0.032		9.3	0.58	0.114	795
  MXW11	174×1400/0.063×0.04	11	7.4	0.74	0.143	685Ⅰ
  MXW13	165×1400/0.063×0.04	13	8.8	0.73		650Ⅰ
  MXW13	174×1700/0.063×0.032		12.9	0.62	0.127	630
  MXW14	165×1500/0.063×0.036	14	11.4	0.67	0.135	600
  MXW15	160×1500/0.063×0.036	15	12.4			510
  MXW15	150×1400/0.063×0.04		11.4	0.71	0.143
  MXW17	130×1100/0.071×0.05	17	9.4	0.87	0.171	400Ⅱ
  MXW18	130×1200/0.07l×0.045	18	12.0	0.80	0.161	510
  MXW20	100×760/0.10×0.071	20	7.4	1.25	0.242	400Ⅰ
  MXW21	130×1600/0.063×0.036	21	18.6	0.64	0.135	360Ⅰ
  MXW22	100×850/0.10×0.063	22	10.0	1.14	0.226	360Ⅱ
  MXW24	90.7×760/0.10×0.07l	24	9.6	1.23	0.242	320
  MXW26	90.7×850/0.10×0.063	26	12.7	1.12	0.226	300Ⅰ
  MXW28	80×700/0.112×0.08	28	9.8	1.38	0.272	300Ⅱ
  MXW29	78×700/0.112×0.08	29	10.3	1.37		280
  MXW31	78×760/0.112×0.07l	31	13.5	1.25	0.254	256
  MXW31	70×600/0.14×0.09		10.1	1.61	0.32	200
  MXW36	65×600/0.14×0.09	36	12.0	1.59
  MXW47	50×500/0.14×0.112	47		1.83	0.364	160
  MXW51	50×600/0.125×0.09	51	17.2	1.47	0.305
  MXW63	40×430/0.18×0.125	63	15.4	2.09	0.43	160
  MXW70	40×560/0.18×0.10	70	23.5	1.73	0.38
  MXW77	30×250/0.28×0.20	77	11.2	3.41	0.68	120
  MXW89	30×340/0.28×0.16	89	17.9	2.84	0.60
  MXW101	20×150/0.45×0.355	101	7.5	6.02	1.16	80
  MXW110	24×300/0.28×0.18	110	19.6	3.01	0.64	95
  MXW118	20×200/0.355×0.28	118	12.1	4.58	0.915	80
  MXW119	20×260/0.25×0.20	119	17.6	3.14	0.65

Reverse Dutch Weave

Hole Patterns:square,rectangle

Surface Treatment:picking and passivation,polishing
